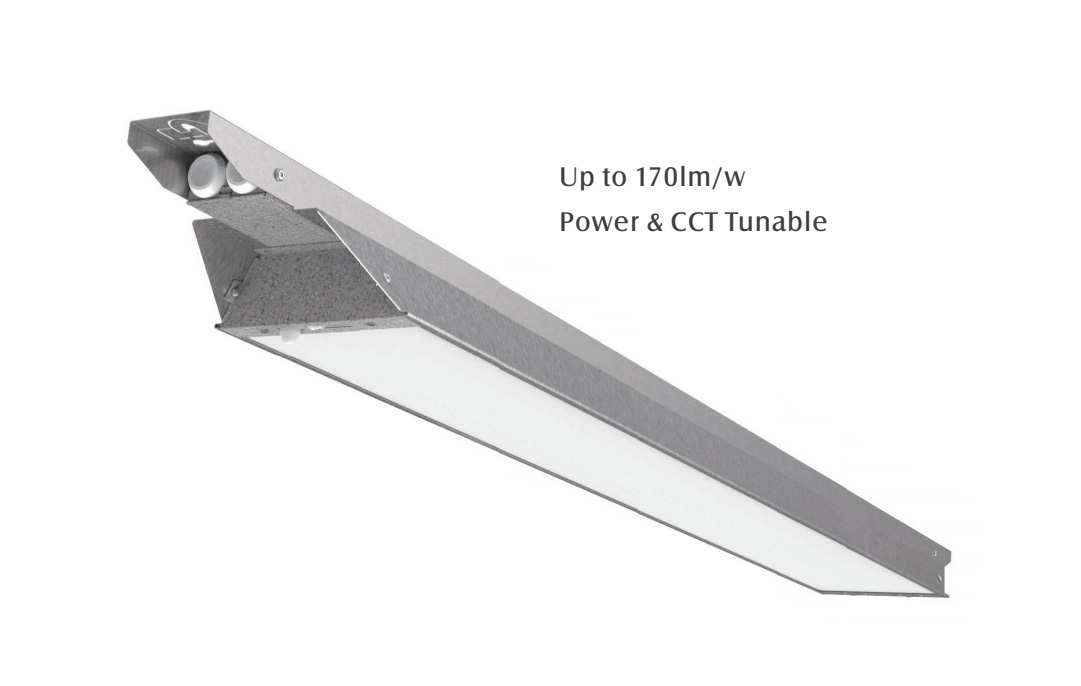

Silver LED Linear Lowbay Light

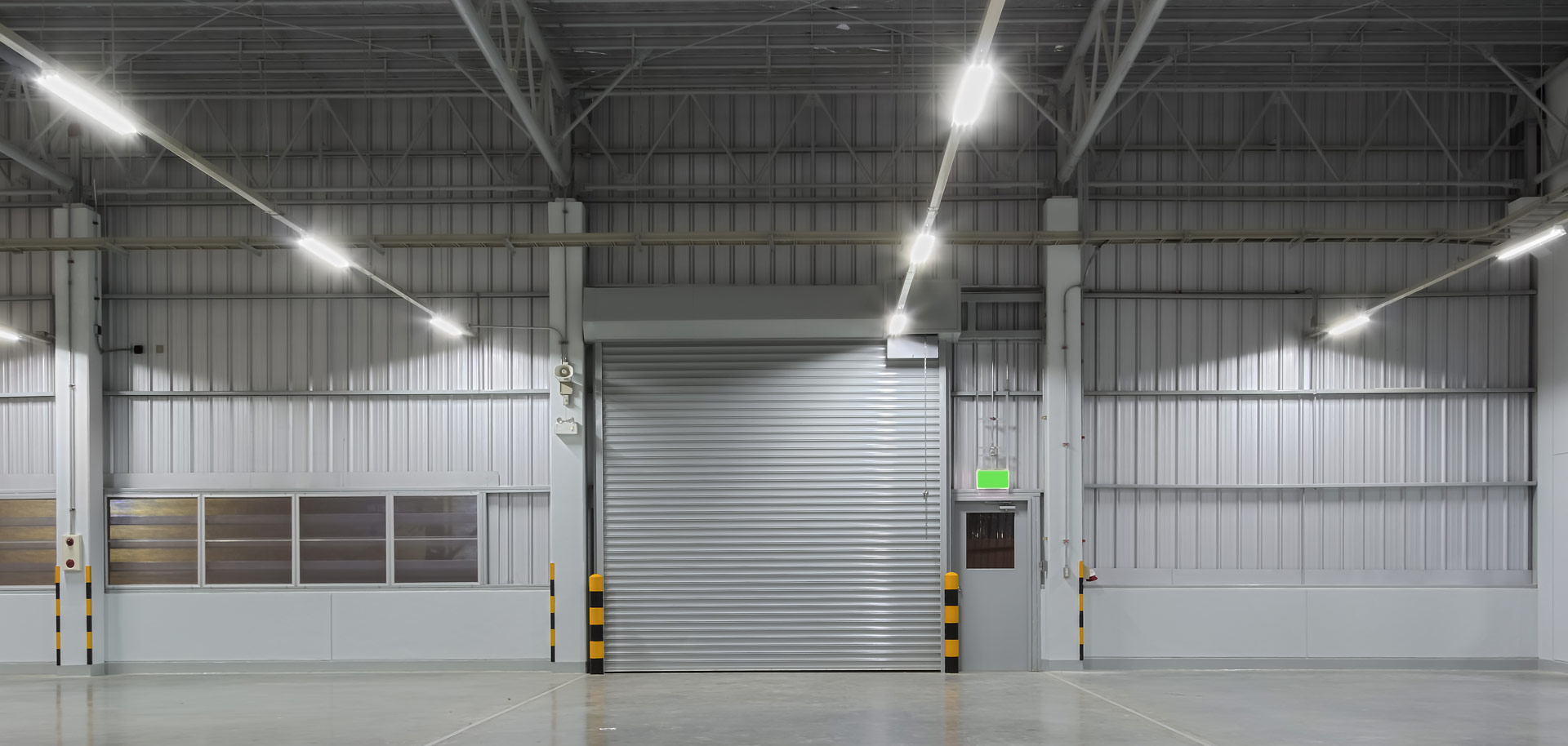

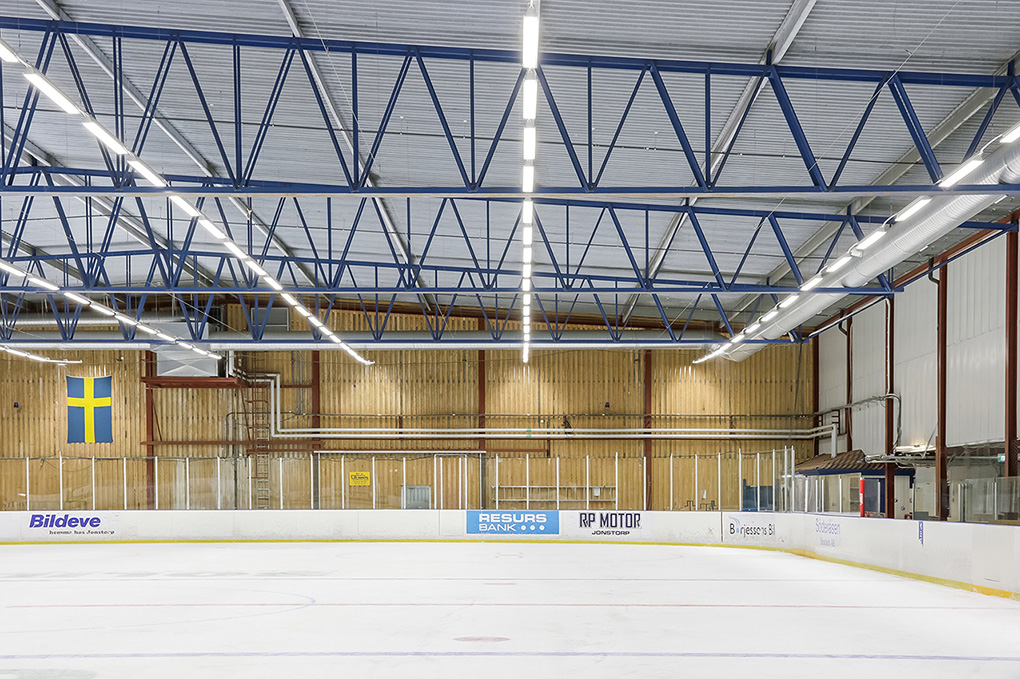

FWD Silver LED Linear Lowbay Light is an innovative retrofit product for industrial areas. It is a perfect lighting solution for low ceiling industrial places such as Garage, Car Shop, Basement, Warehouse, Factory, Gymnasiums. With Power & CCT adjustable functions, the user can choosee the appropriate power level and adjust the color temperature to suit the preferences or specific lighting needs.
FEATURES
- Super high luminous efficiency 160-170lm/
- Aluzinc housing and endcaps, light and thin, easy to carry and install
- Power & CCT Tunable design provides versatility and fexibility for different request

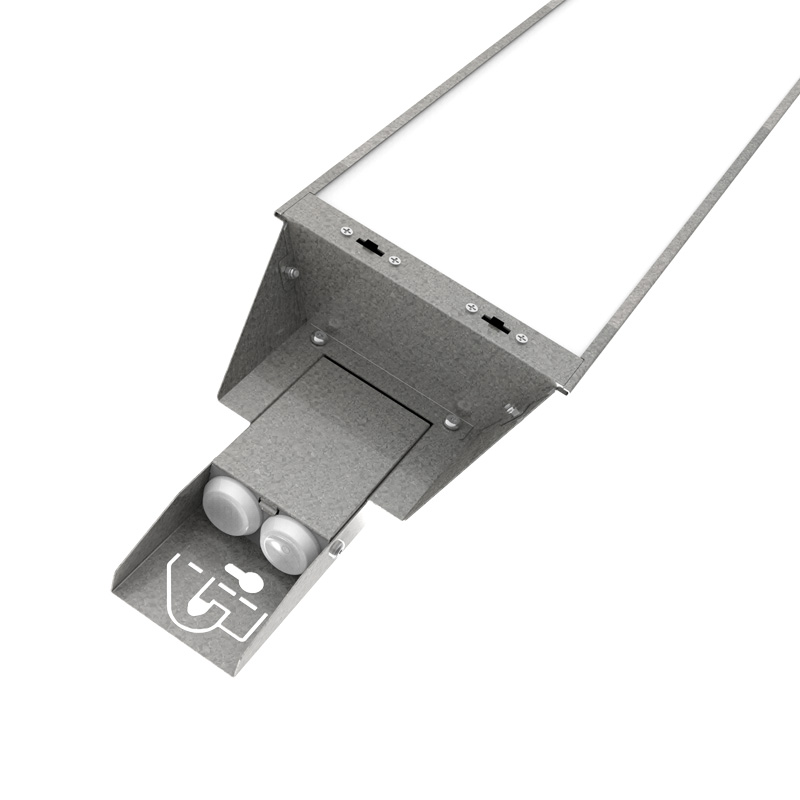

- Internal 2.5mm2 standard wiring with 5 poles terminal block, easy installation
- Multiple mounting options, Ceiling Mounted, Integrated Wirebracket/
- Rail Bracket Mounted/ Adjustable Bracket Mounted;
- Dali, Motion Sensor Optional;
- 80,000hrs Lifespan, 5 Years Warranty
Previous
Next
| Model No. | MP4B-50W-PC | MP5B-65W-PC | MP4B-50W-PC-D | MP5B-65W-PC-D |
| Norminal Wattage | 30W&40W&50W | 45W&55W&65W | 30W&40W&50W | 45W&55W&65W |
| Dimension(mm) | 1200mm | 1500mm | 1200mm | 1500mm |
| Input Voltage AC | AC100-277V 50/60Hz | |||
| Dimming Control | 0/1-10V ,Dali Optional | |||
| Driver | Lifud | |||
| Operating Temperature | -40 to +60oC | |||
| Power Factor(PF) | >0.95 | |||
| THD | <15 | |||
| Protection | OTP, OCP, OPV, SCP | |||
| Luminarie Efficiency(+/-5%) | 160-170lm/w | |||
| Beam Angle | 120° | |||
| CRI | Ra>80 | |||
| CCT | 3000K/4000K Tunable | |||
| Rating | IP44 | |||
| Housing | Pure Aluminum A6063 | |||
| Installation | Suspension, Surface mounting | |||
| Warranty | 5 Years | |||
| Lifetime | >50,000h | |||
| Certifications | CE, RoHS | |||
