Pure Mini LED Pendant Light

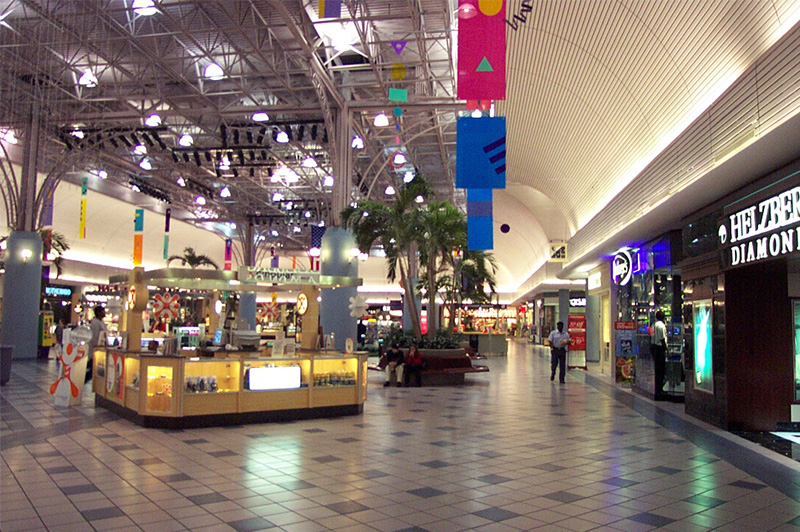

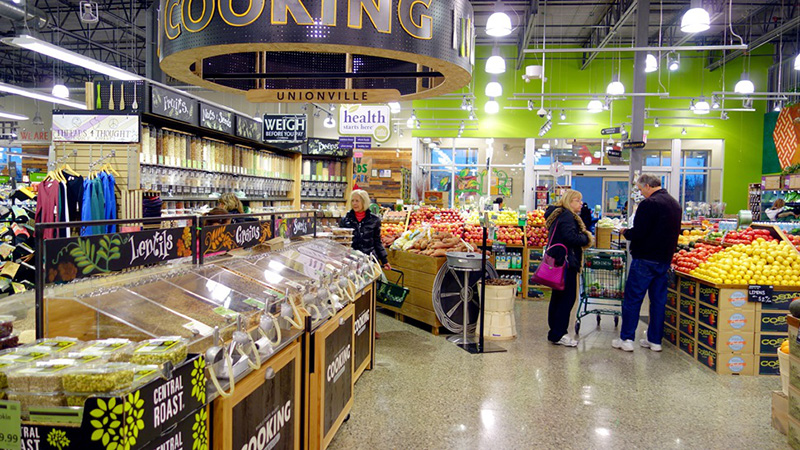

FWD Pure Mini LED Pendant Light is designed with aesthetically pleasant appearance, versatile function with multi-lumen, multi-CCT and excellent glare control, which makes it the most harmonious luminaire for different request of lumen output and lighting environment. Widely used to supermarket, shopping mall, office building, showrooms, car dealer shops, retailing shops,etc.
Features
• 3-in-1 Power & CCT Tunable switch provides versatility for different request of lumen output and lighting environment.

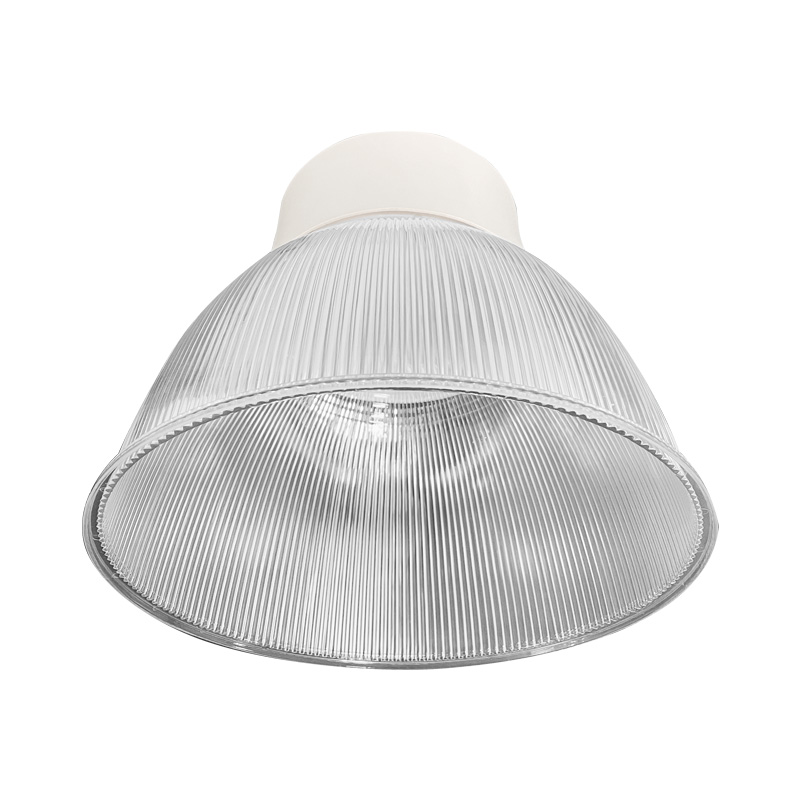

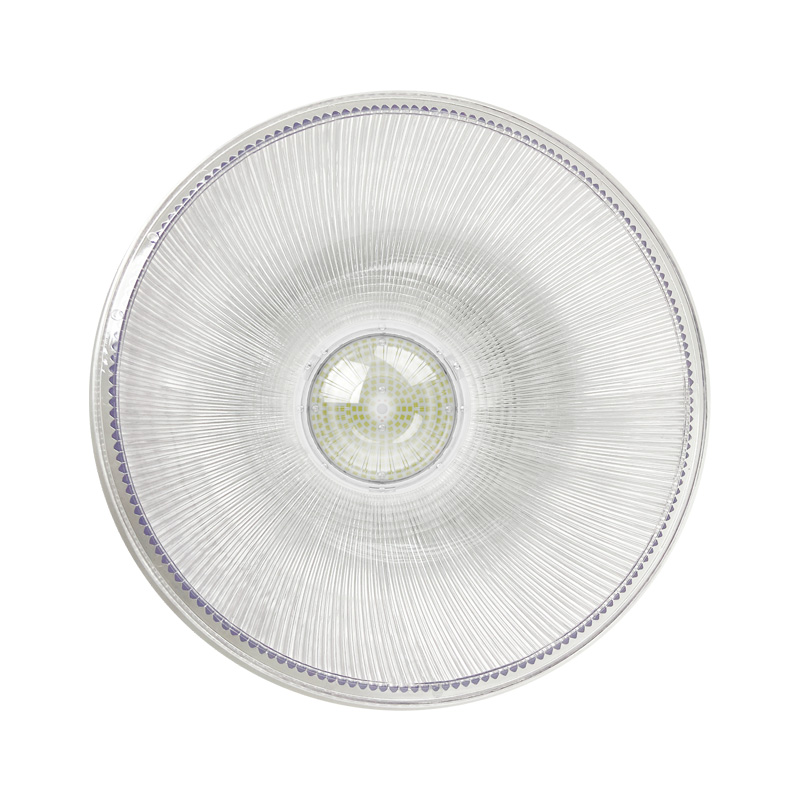

• Optically refined Polycarbonate reflector was used to enhance surrounding lighting and excellent glare control UGR 19, brings Eyes comfort.
• Enhance local area lighting effects.
• Ingenious hidden heat dissipation channel for ensuring a stable and long service life of the LEDs.
• Aluminum housing is designed with soft curve outlines for minimal dust accumulation
• Efficiency 130lm/w and optionally 160lm/w
• Compatible but not limited to the following:
–Track mount –Dali, 0-10V –Emergency Gear –Sensor and other smart gear

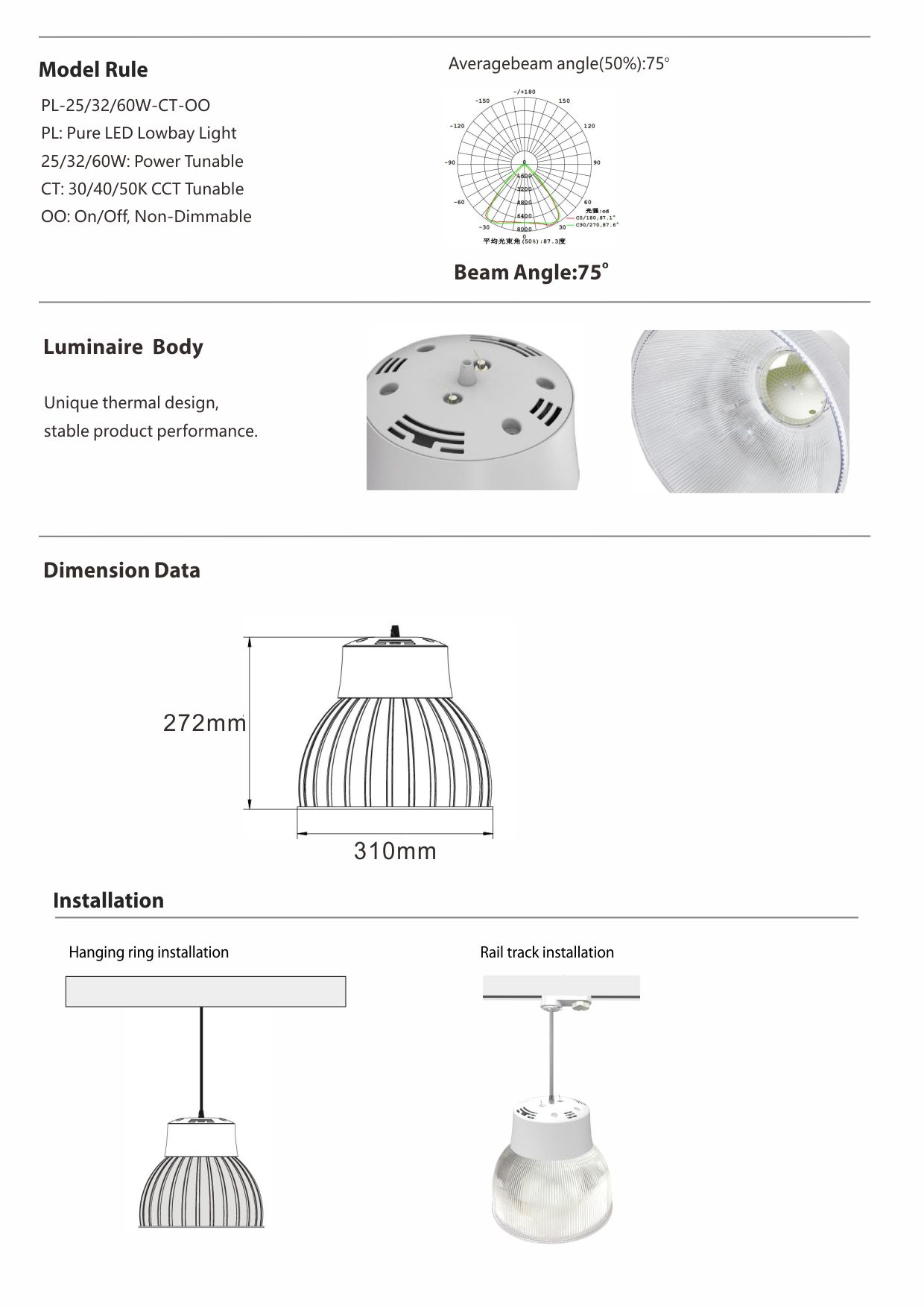

| Model No. | PL-25/32/60W-CT-OO |
| Norminal Wattage | 25W/32W/60W Tunable |
| Dimension(mm) | φ310xH272mm |
| Weights | 2.50kg |
| Input Voltage AC | AC100-120V or AC220-240V |
| LED Brand | SMD2835 |
| Function | On/Off, Triac/0-10V/Dali Optional |
| Driver Brand | MOSO, other brands upon request |
| Operating Temperature | -30 to +50oC |
| Power Factor(PF) | >0.9 |
| THD | <20% |
| Lumen Output(+/-5%) | 3250/4160/7800Lm Tunable |
| Luminarie Efficiency(+/-5%) | 130lm/w, 160lm/w Optional |
| Beam Angle | 75o |
| Ra | Ra>80 |
| CCT | 3000K/4000K/5000K Tunable, other CCT Optional |
| Rating | IP40 IK06 |
| Material | PC + ABS |

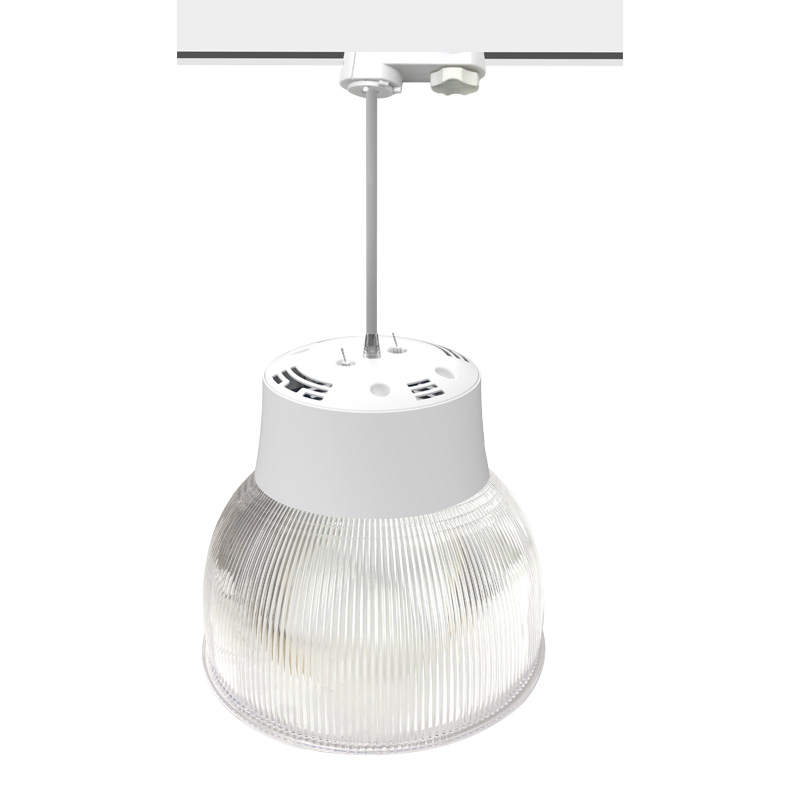

| Installation | Hanging ring installation/Rail track installation |
| Accessories(Optional) | Reflectors/ Motion Sensor/ PIR Sensor/ Day light Sensor for Optional |
| Shell Color | White |
| Lumen Maintenance | >50,000H L70/B50 at 25oC |
| Certifications | CE RoHS |
