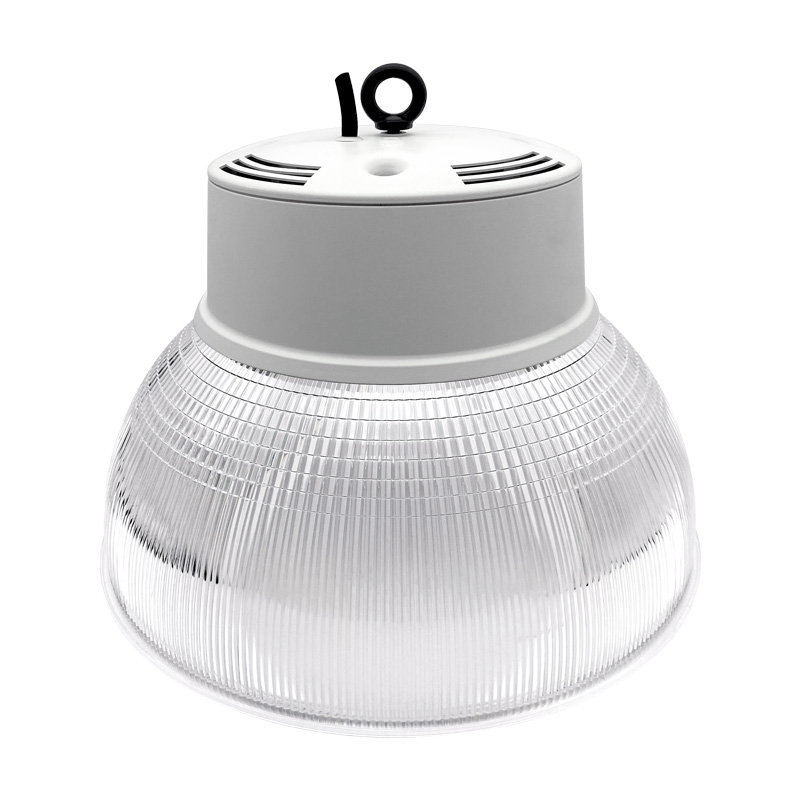

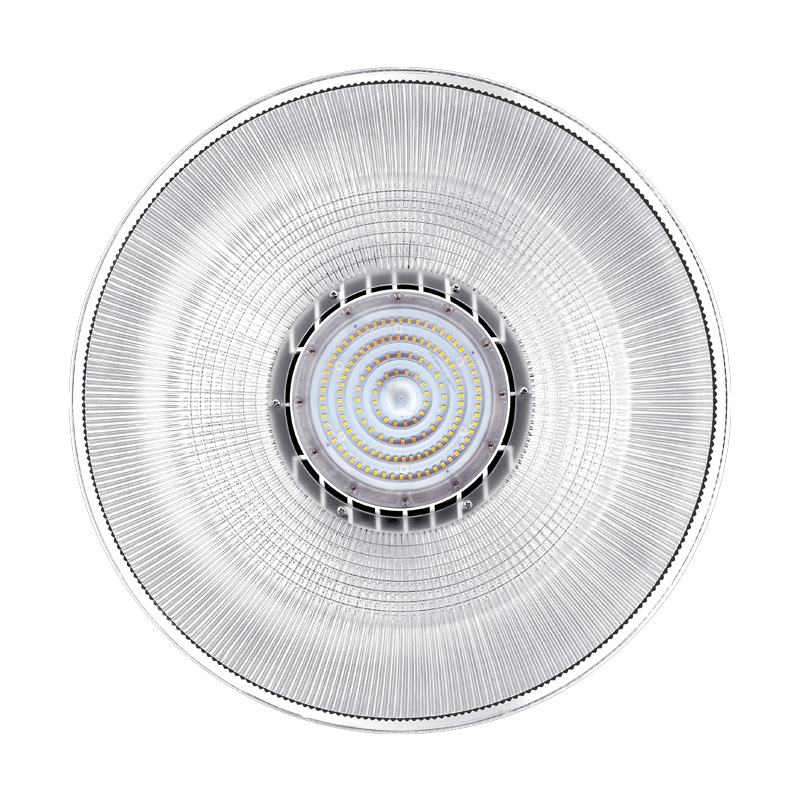

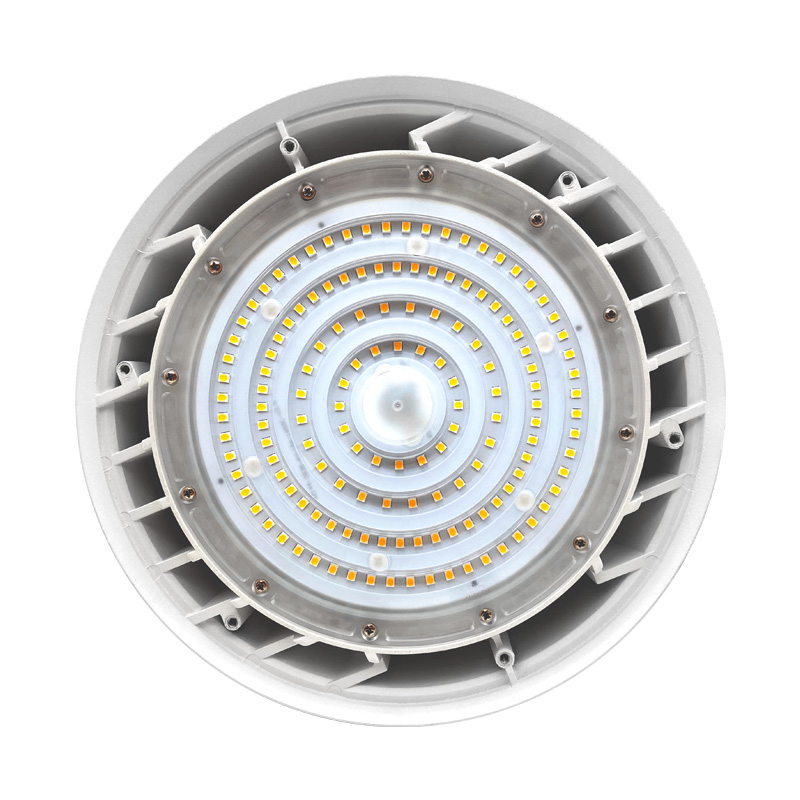

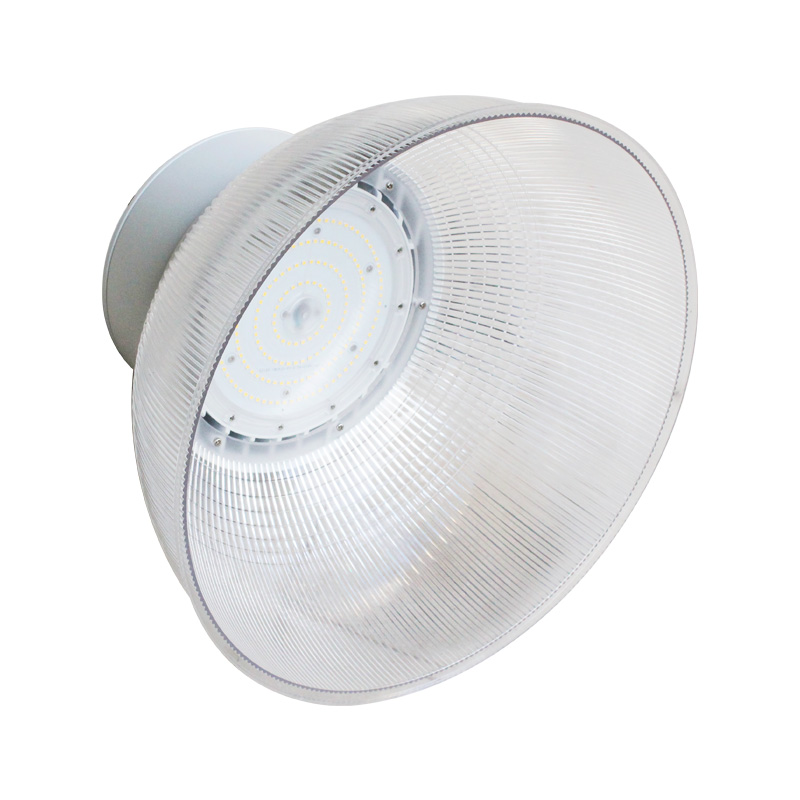

Pure LED Pendant Light
FWD Pure LED Pendant Light are uses SMD2835 luminous source, providing excellent lumen output, long-lasting stability and splendid sight. Pure Series LED High Bay lights are using high-end LED driver with long lifespan. Provide 5 years warranty on luminaire.
Features
- Up to Luminaire efficiency 130-160 lm/w;Led Module efficiency 190 lm/w
- Well suitable for Aesthetically demanding spaces
- Heat sink with PC reflector, unique appearance
- Low operating temperature, makes it extremely versatile under different easy/hard operating conditions
- UGR<19
- PC reflector design/Anti-glare
- Easy Installation
- 5 Years Guarantee
Previous
Next

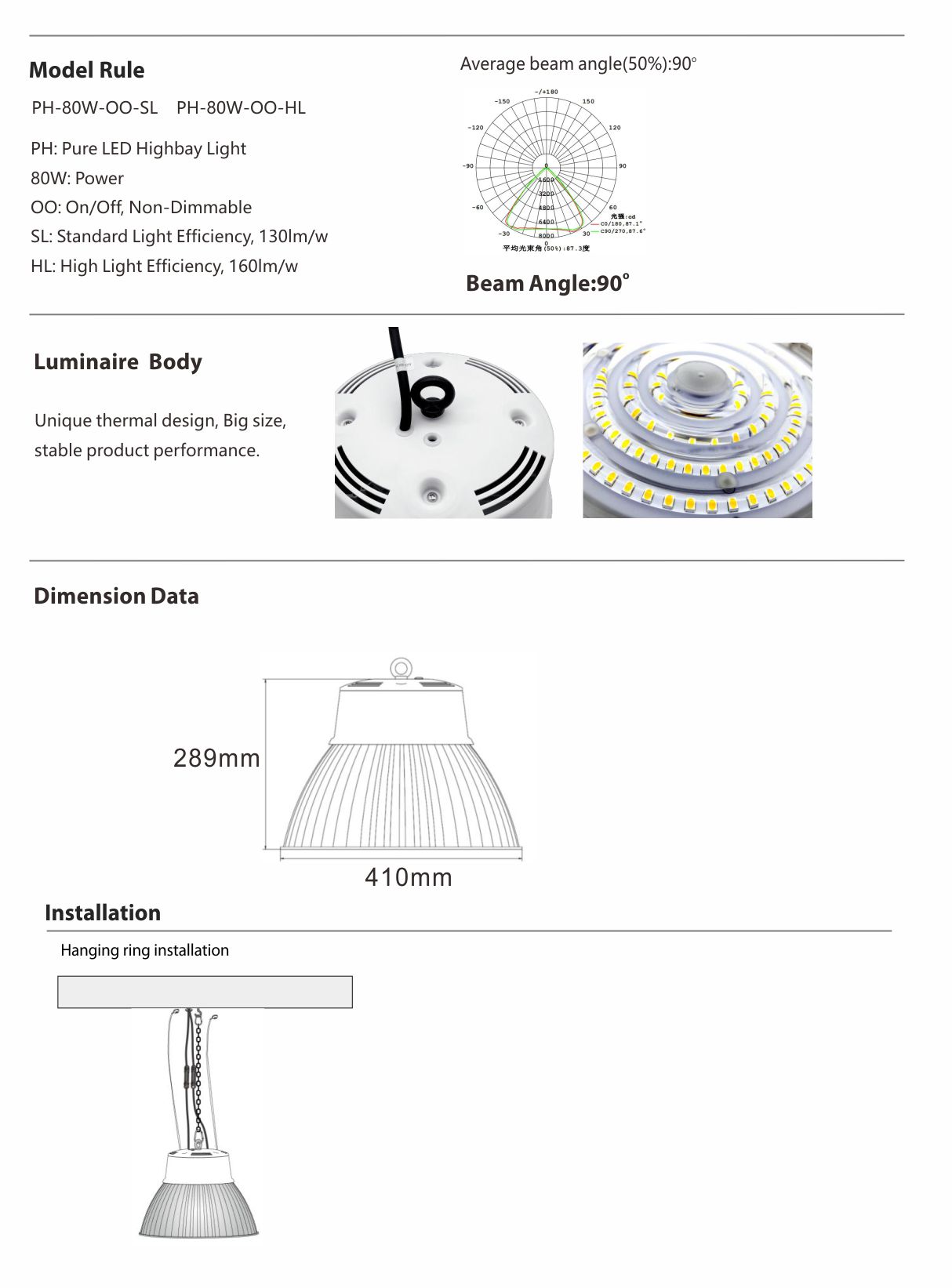

| Model No. | PH-80W-OO-SL | PH-120W-OO-HL |
| Norminal Wattage | 80W | 120W |
| Dimension(mm) | D410*289mm | D410*289mm |
| Weights | 2.50kg | |
| Input Voltage AC | AC90-305V | |
| LED Brand | SMD2835 | |
| Function | On/Off, Triac/0-10V/Dali Optional | |
| Driver Brand | MOSO, other brands upon request | |
| Operating Temperature | -30 to +50oC | |
| Power Factor(PF) | >0.9 | |
| THD | <20% | |
| Luminarie Efficiency(+/-5%) | 130lm/w, 160lm/w Optional | |
| Beam Angle | 90o | |
| Ra | Ra>80 | |
| CCT | 3000K/4000K/5000/5700K | |
| Rating | IP65 IK08 | |
| Material | PC + ABS | |
| Installation | Hanging ring installation/Rail track installation | |
| Accessories(Optional) | Reflectors/ Motion Sensor/ PIR Sensor/ Day light Sensor for Optional | |
| Shell Color | White | |
| Lumen Maintenance | >50,000H L70/B50 at 25oC | |
| Certifications | CE RoHS | |
Get A Free Quote
Shenzhen forworld-lighting Technology Co., Ltd. (Referred to as “FWD”) is a wholly-owned subsidiary of Shenzhen AMB Technology Co., Ltd (Referred to as “AMB”). Since 2006, we have been focusing on the development and manufacturing of the professional and innovative Industrial & Agricutural LED lighting solution.
