MHL LED Linear Tube
Features
- IP68 Rating, Highest Waterproof Rating
- IP69K Rating, Withstand high pressure 100bar & high, temperature 80°C water cleaning
- Built-in High-frequency Driver, It can be operated in temperature range from -40 to +80°C
- Meet Safety of food, Comply with TRCU 021/2011 on safety of food, suitable for the food industry
- Quick Connect System,It allows for a simple, quick connection with any required length of cable
- 180° Beam Angle, Wider beam angle ensure more uniform lighting distribution

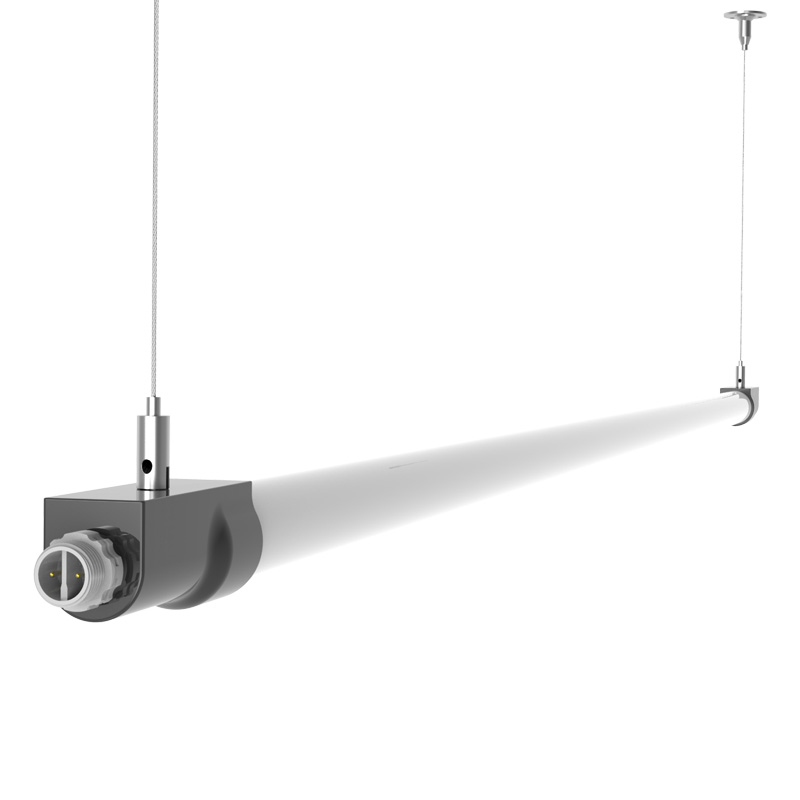

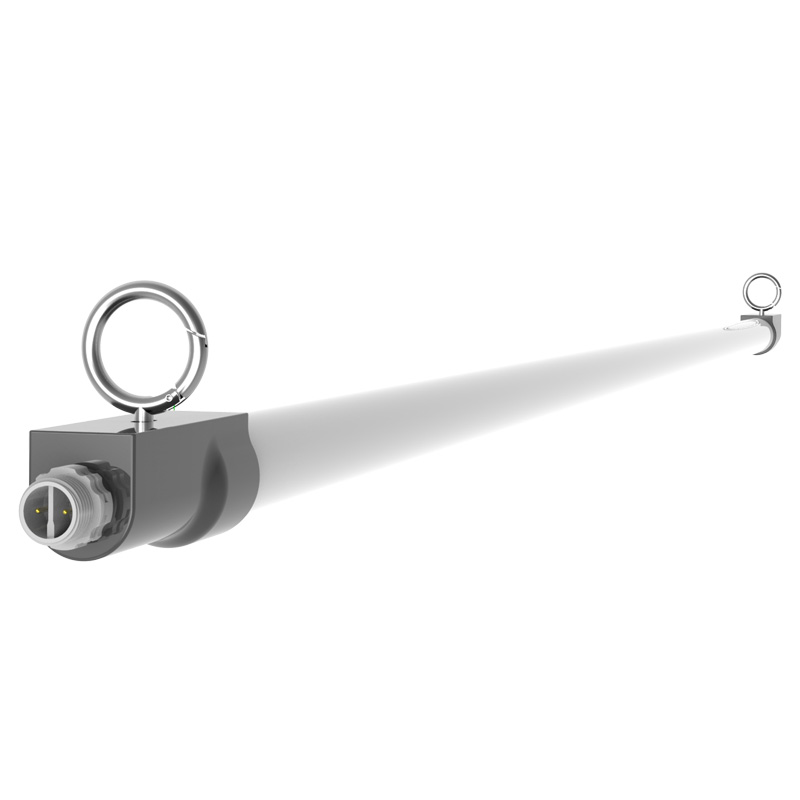

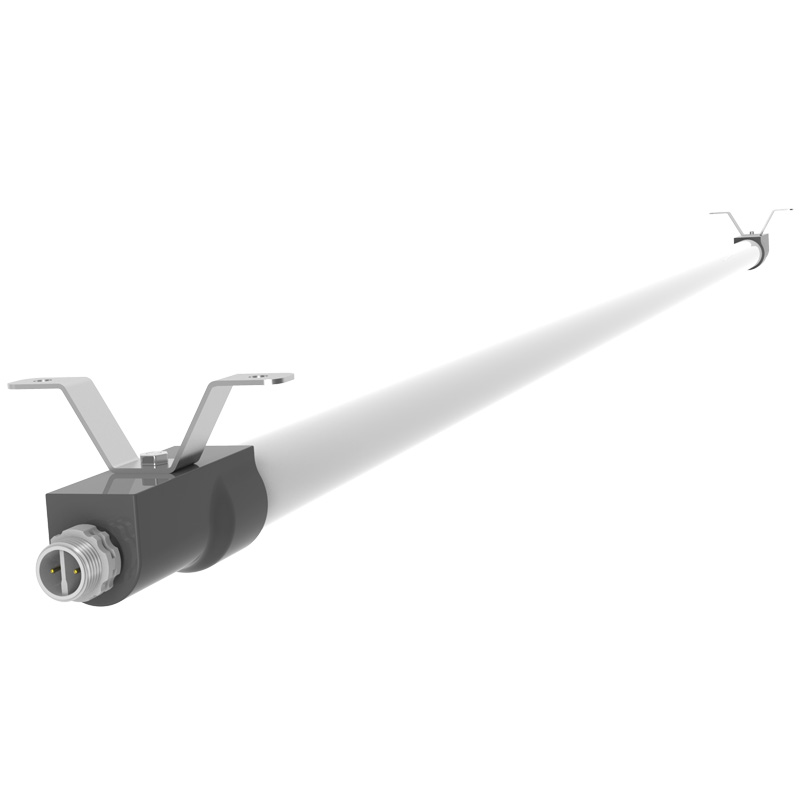

- Multiple Mounting Methods, Ceiling/Wall mounting, suspension ring, suspension rope hanging
- PMMA Housing, The acrylic housing is impact resistant IK10 and highly ammonia-resistant
Previous
Next
| Model No. | WP4U-T10-20WND | WP5U-T10-25WND | WP6U-T10-30WND | WP6U-T10-36WND |
| Norminal Wattage | 20W | 25W | 30W | 36W |
| Dimension(mm) | D30*1200mm | D30*1500mm | D30*1800mm | D30*1800mm |
| Weights | 0.35kg | 0.37KG | 0.42KG | 0.42KG |
| Input Voltage AC | AC90-285V 50/60Hz | |||
| LED Brand | SMD2835 | |||
| Operating Temperature | -40 to +80oC | |||
| Luminarie Efficiency(+/-5%) | 130lm/w | |||
| Beam Angle | 180° | |||
| CRI | Ra>80 | |||
| CCT | 2700-6500K | |||
| Rating | IP69K,IP68,IK10 | |||
| Housing | PMMA | |||
| Installation | Suspension, Surface mounting | |||
| Warranty | 5 Years | |||
| Lifetime | >50,000h | |||
| Certifications | CE, RoHS | |||
Get A Free Quote
