LED Ceiling Light
FWD Pluto LED Ceiling Light is a unique surface mounted LED luminaire. The opal diffusor and the rounded lentil-like shape gives it a discrete, modern appearance. It is fair to say that Pluto- 18W “all-rounder” both when it comes to design and functionality
Description
AMB Pluto- 18W is a unique surface mounted LED luminaire.The opal diffusor and the rounded lentil-like shape gives it a discrete, modern appearance.
It is fair to say that AMB Pluto- 18W “all-rounder” both when it comes to design and functionality
Easy mounting
This is a product that is designed for easy mounting on all types of surfaces. Using only three screws the luminaire can easily be attached to all common flush mounting boxes, whether it is in the ceiling or on the wall. The luminaire is also equipped with a smart cable entry for surface mounted cable.
A versatile product

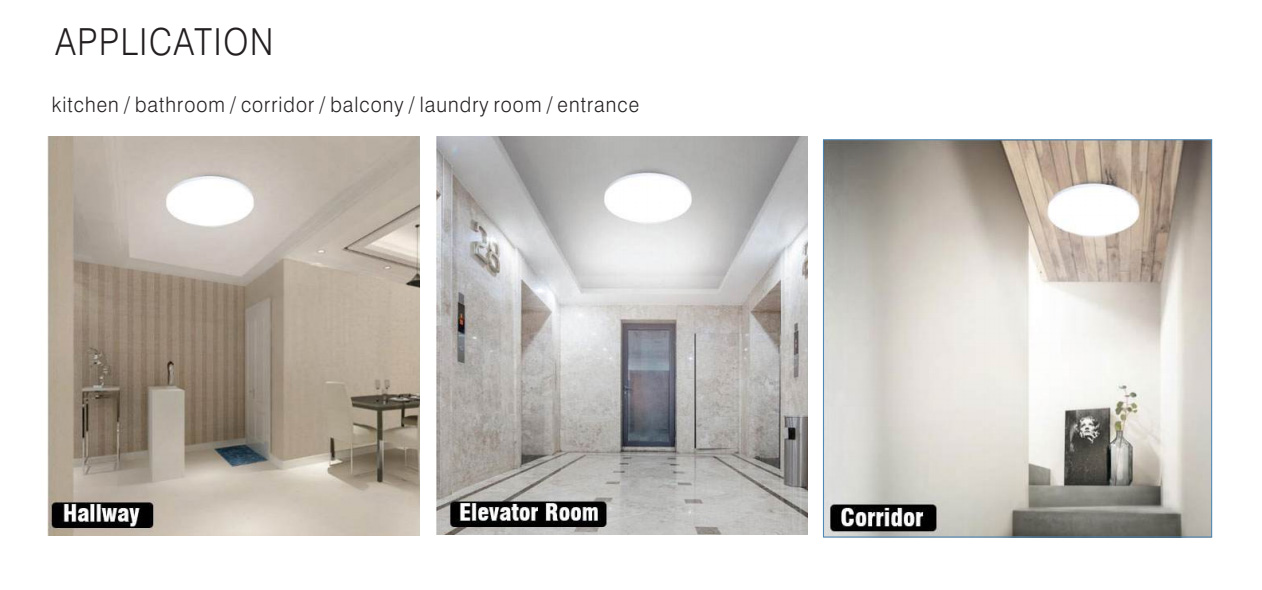

AMB Pluto- 18W(Ø310 ) can be mounted on walls as well as on ceilings, makes this a versatile product well suited for applications such as corridors,
stairwells, lavatories, small storage rooms. By combining the two different sizes you also get more options in areas where space is limited.

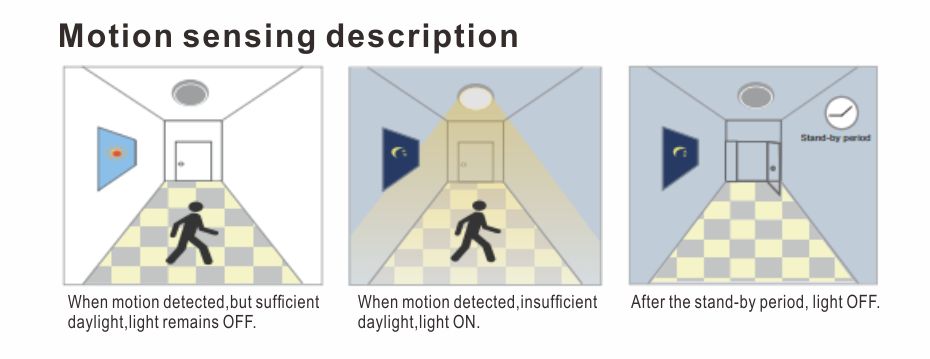

Light management
The luminare is available with a 0-10v driver and an integrated motion sensor and emergency kit. One option is a sensor with on/off function. Another option is to choose a sensor with Emergency kit. This means that the light level will be 100% when power system is off, when there’s no presence the light level is reduced to a background level of 10%. After 15 minutes of absence the light is turned off completely. Master-slave configured for up to a total of 11 luminaires and up to 5 masters. One master-slave system can cover a maximum corridor length of approximately 35 metres.
Emergency light
The largest version of AMB Pluto- 18W is available with integrated 1 or 3-hour emergency lighting. This increases the value of the light installation, by adding safety as a part of the solution.
| Model No. | CL310B-18WOO | CL310B-18WMS | CL310B-18WDA | |
| Norminal Wattage | 18W | 18W | 18W | |
| Dimension(mm) | D310*48.5MM | D310*48.5MM | D310*48.5MM | |
| Input Voltage AC | AC100-240V 50/60Hz | |||
| Dimming Control | DALI | |||
| Light Source | 0.2W 2835 SMD | |||
| Operating Temperature | -40 to +60oC | |||
| Power Factor(PF) | >0.95 | |||
| THD | <15 | |||
| functiom | On/Off, Dali, Motion Sensor,Emergency | |||
| Luminarie Efficiency(+/-5%) | 120lm/w | |||
| Beam Angle | 120° | |||
| CRI | Ra>80 | |||
| CCT | 3000K/4000K/5000K | |||
| Rating | IP54,IK08 | |||
| Housing | PC | |||
| Installation | Suspension, Surface mounting | |||
| Warranty | 5 Years | |||
| Lifetime | >50,000h | |||
| Certifications | CE, RoHS | |||
