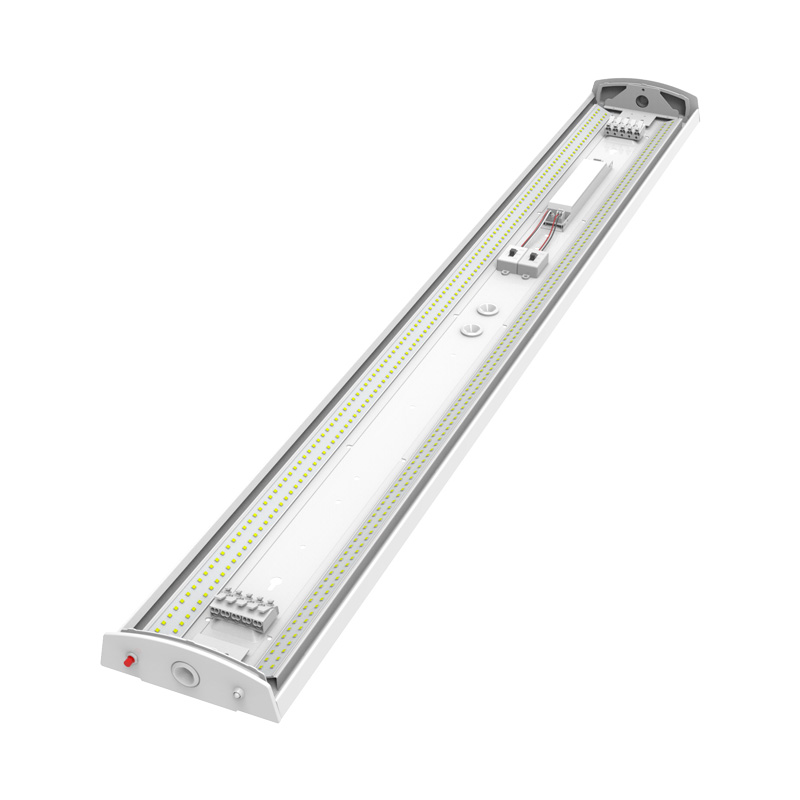

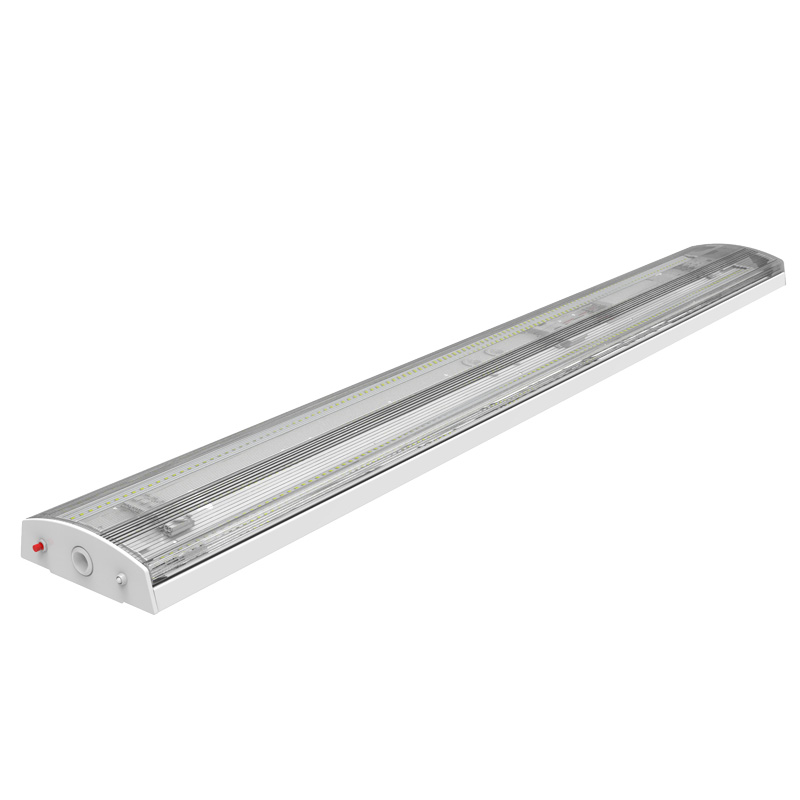

AX LED Batten Light
FWD AX LED Batten Light is an innovative and slim luminaire with IP44 protection. It is a perfect lighting solution

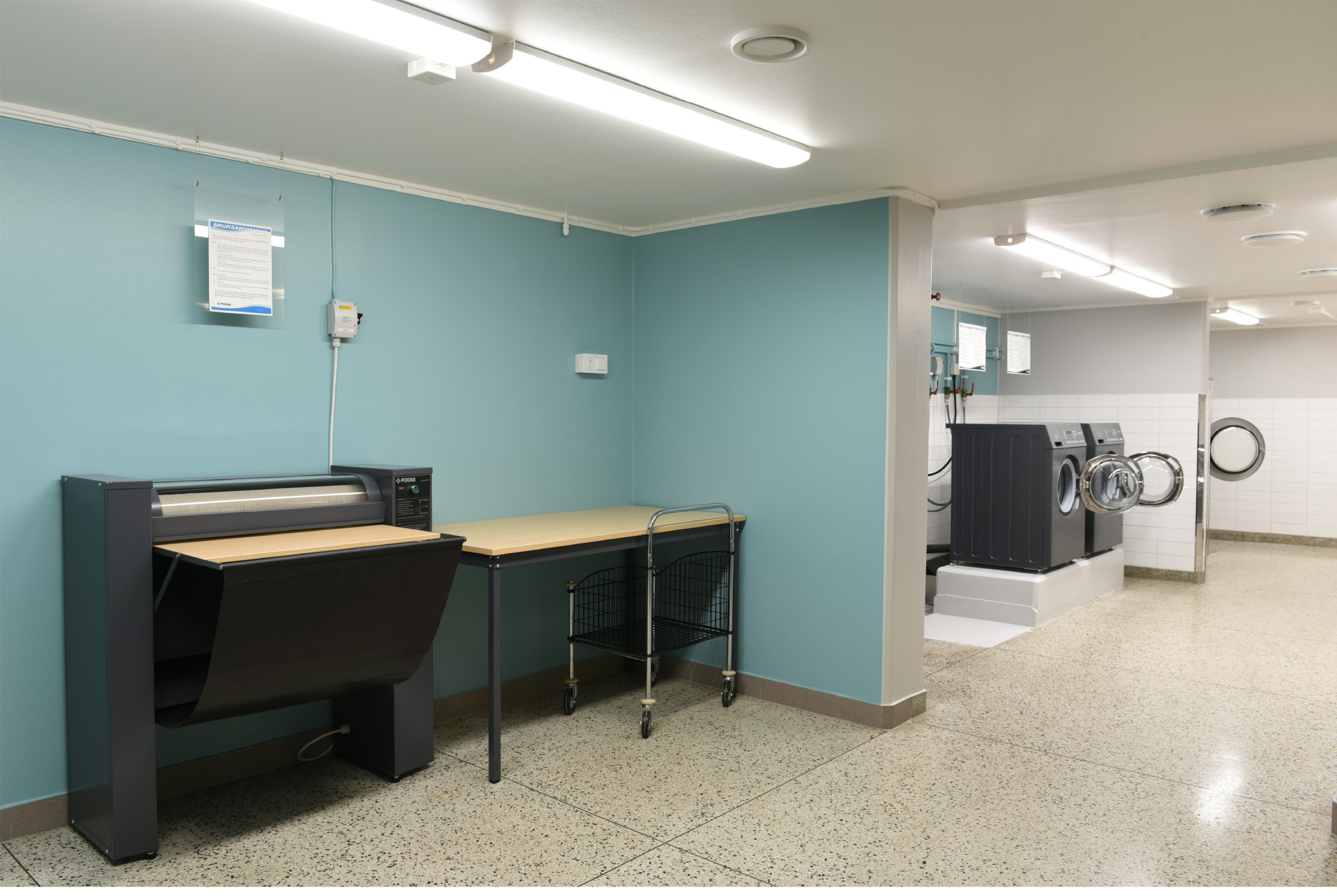

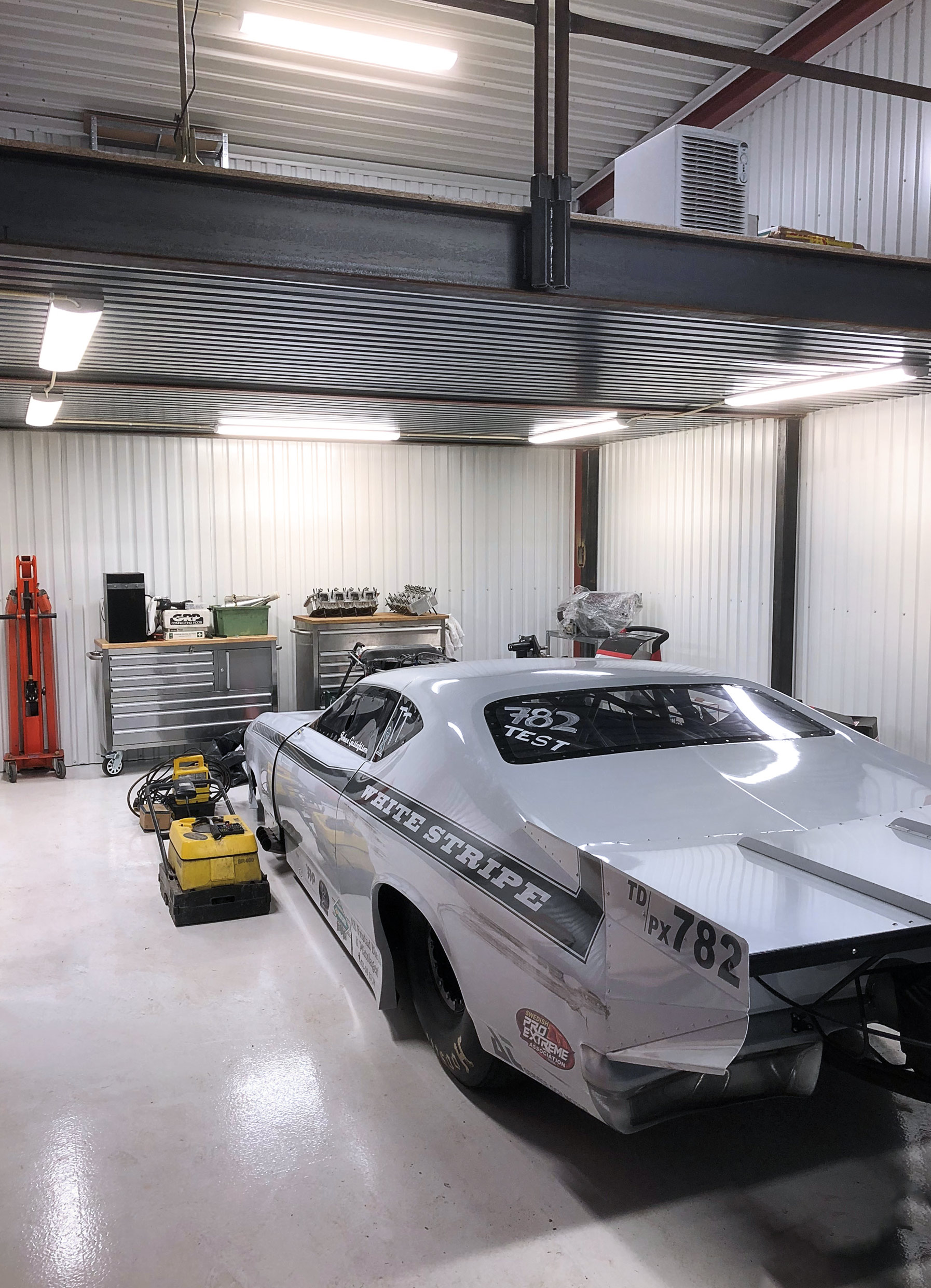

for the residential and commercial places such as office, school, laundry room, kitchen, workshop, exhibition hall.

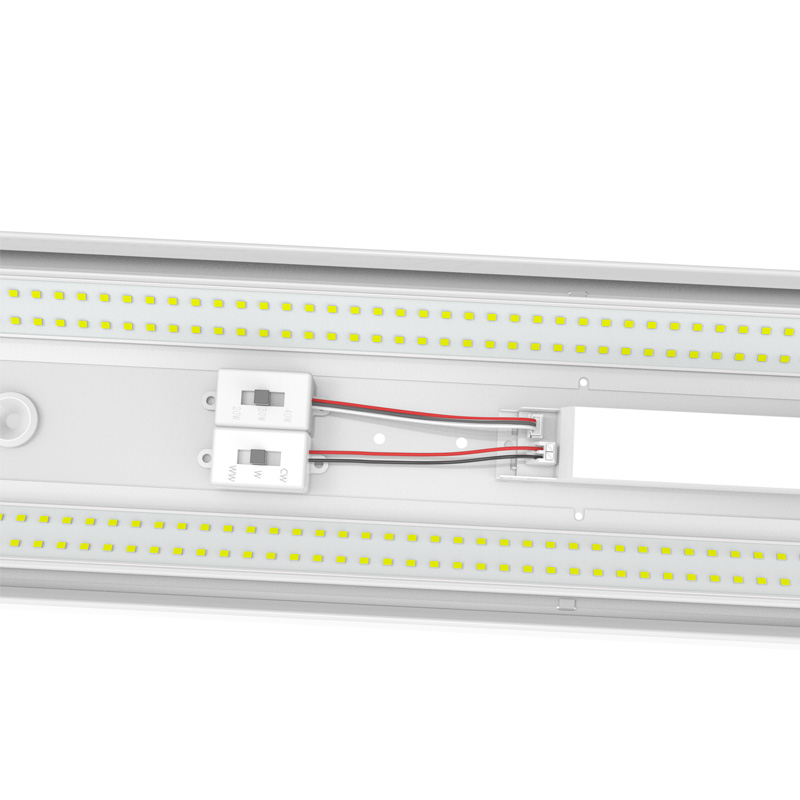

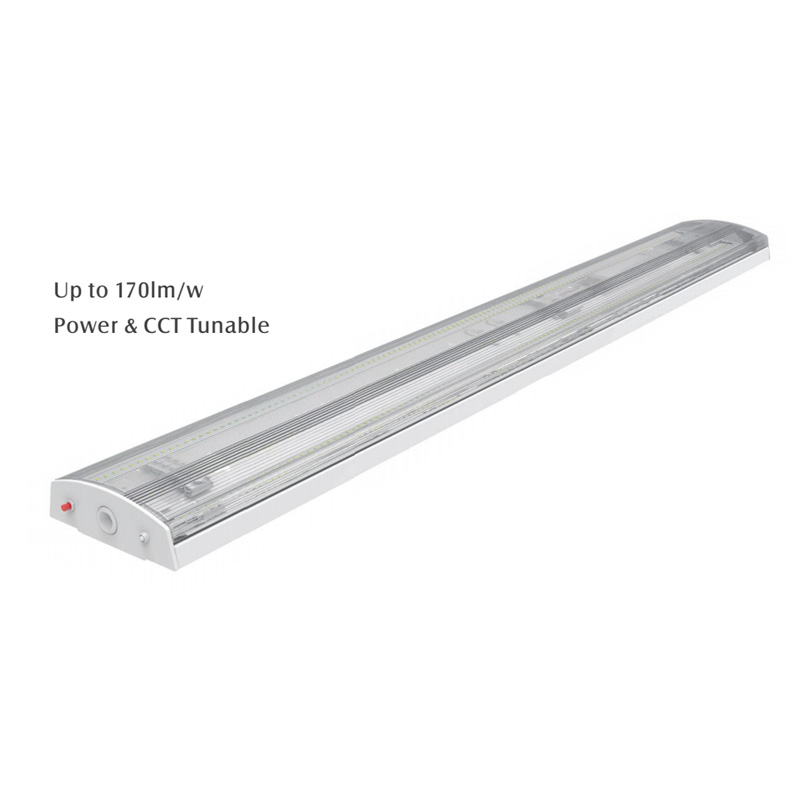

The Power & CCT Tunable design provides versatility and flexibility for different requests.
FEATURES
- Super high luminous efficiency 160-170lm/wPatented internal isolated driver,PF>0.97
- Built-in active PFC function, Isolated driver with UL .TUV .VDE .PSE . SAA approve.
- Unique patent heat sink design for stable performance.
- Patented heat sink, LED working temperature below 50 centigrade, it is good for light’s lifespan.
- Excellent aluminum,surface smoothing, anti-oxidation, anti-acid, radiates quickly.
- High performance,5years warranty and 50000 hours lifespan.
- Energy saving,labor saving and lower maintenace cost.
- Special cir cuit design,avoided the signgle broken led influence problem.
- Patented heat dissipation, depend on whole iron house.
- No need bracket, it can be used directly.
Previous
Next
| Model No. | AX4B-40W-CP | AX5B-55W-CP | AX4B-40W-CP-D | AX5B-55W-CP-D |
| Norminal Wattage | 20W&30W&40W | 35W&45W&55W | 20W&30W&40W | 35W&45W&55W |
| Dimension(mm) | 1200mm | 1500mm | 1200mm | 1500mm |
| Input Voltage AC | AC100-240V 50/60Hz | |||
| Dimming Control | 0/1-10V ,Dali Optional | |||
| Driver | Lifud | |||
| Operating Temperature | -40 to +60oC | |||
| Power Factor(PF) | >0.95 | |||
| THD | <15 | |||
| functiom | On/Off, Dali, Motion Sensor,Emergency | |||
| Luminarie Efficiency(+/-5%) | 160-170lm/w | |||
| Beam Angle | 120° | |||
| CRI | Ra>80 | |||
| CCT | 3000K/4000K/5000K Tunable | |||
| Rating | IP44,IK08 | |||
| Housing | Aluminum +PC | |||
| Installation | Suspension, Surface mounting | |||
| Warranty | 5 Years | |||
| Lifetime | >50,000h | |||
| Certifications | CE, RoHS | |||
